What is In'Flector Solar Blind?

In'Flector is transparent, internal, sun and temperature control shade. It was developed by NASA engineers and is a product of USA. It has the benefits of reflective window film, double pane glass (double glazing) and window blind combined together.

It has the solar shade performance of reflective window film (SHGC = 0.38). The thermal insualtion performance is equivalent to a 6+12A+6 double pane glass (U value = 2.7 W/m2.k ). It is easy to install and flexible to use like window blind.

The unique two-sided smart tech design (summer/winter, you simply turn them around) can absorb sunlight in winter to generate heat to warm up the room. In fact, A 4'×4' Inflector generates 2096 BTU/hour in direct light, which equates to a 600 watt electric heater.

The angular perforation allow for light transmission to be of similar wavelength as your retinal receptors, thus preventing headaches, and eye strain.

In'Flector aids in stabilizing indoor temperature, allowing natural light in and reflecting back solar heat and UV rays. It helps to provide a safer, comfortable environment along with lower energy bills. In'Flector can reduce energy costs by up to 50% by addressing the least efficient aspect of our homes and building, the windows. It alleviates thermal discomfort by reducing heat gain and lowers cooling and electric lighting costs.

Reducing the cooling loads lessens the amount of air pollutants entering the conditioned space through the cooling systems, improving the indoor air quality, reducing building related illnesses such as the Sick Building Syndrome, and increasing productivity.

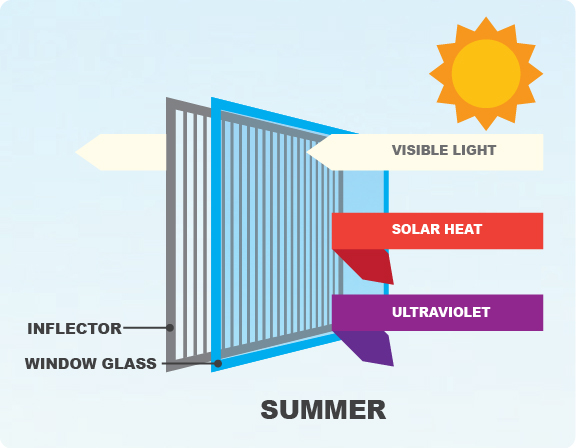

In'Flector Summer function

Benefits in Summer

  • Keeps the cool air in by improving your window's insulation value U-factor by 50% in summer
  • Reflects heat and solar gain. Reflect solar heat gain by 65%; reduce radiant heat gain by 72%
  • Reduces need for air conditioning
  • Protects against sun damage by blocking up to 92% of harmful UV rays
  • Reduces the Solar Heat Gain Coefficient (SHGC) of window by 49%
  • Reduces glare whilst maintaining a clear view
  • Provides daytime privacy (one way vision)

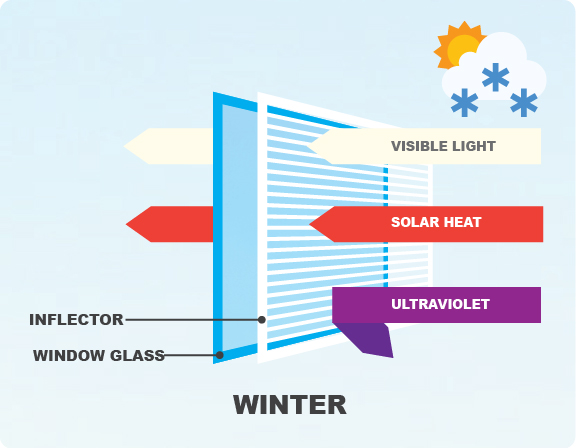

In'Flector Winter Function

Benefits in Winter

  • Absorbs sunlight and converts it into interior radiant heat
  • Protects against sun damage by blocking up to 92% of harmful UV rays
  • Keeps the warm air in by increasing your windows’ insulation value U-factor by 54% in winter
  • Reduces night time heat loss and up to 71% of cold air infiltration
  • Reduces glare whilst maintaining a clear view
  • A 4'×4' Inflector generates 2096 BTU/hour in direct light, which equates to a 600 watt electric heater.
  • Provides daytime privacy (one way vision)

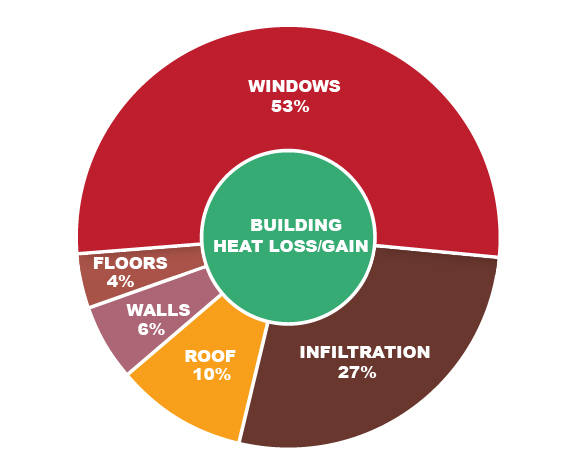

Heat Loss

Window Transfer Heat

Windows are the weakest part of the building envelope and account for heat gain within a building in the summer and heat loss in the winter. Heat gain increases cooling costs and heat loss increases heating costs.

A single pane clear window is 20 times less energy efficient than the wall area they replace; and double pane Low-E windows are 10 times less energy efficient than the wall area they replace. This means that on average a building can lose more than 30% of its heat or air conditioning energy through its windows.

While the amount of heat loss or heat gain through windows depends on whether the windows are single pane glass, clear double pane, Low-Emission coated, or gas filled, the fact is if you have windows you have heat gain and or heat loss every day of every year.

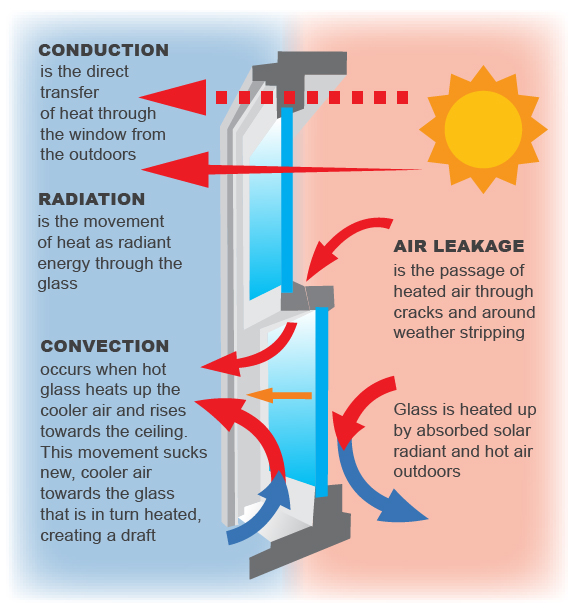

Heat Transfer of Window

How do windows tranfer heat?

Windows lose and gain heat through a combination of four factors:

CONDUCTION - The direct transfer of heat through the materials of the window.

RADIATION - Infrared energy transmitted through the glass.

CONVECTION - Air gives up its heat to the cooler glass and sinks towards the floor. This sets up air currents that draws warmer air to the glass that is in turn cooled causing a draft.

AIR LEAKAGE - The passage of heated air through cracks and gaps in the window fitting.

In'Flector Solar Shades address all of the problems caused by windows in building heat loss and gain. In'Flector gives control over reflectivity, emissivity, absorption, radiant heat gain, solar heat gain, privacy, infiltration, condensation and heat loss in the winter. They also act as a passive solar collector, absorbing sunlight and radiating free heat into the building.

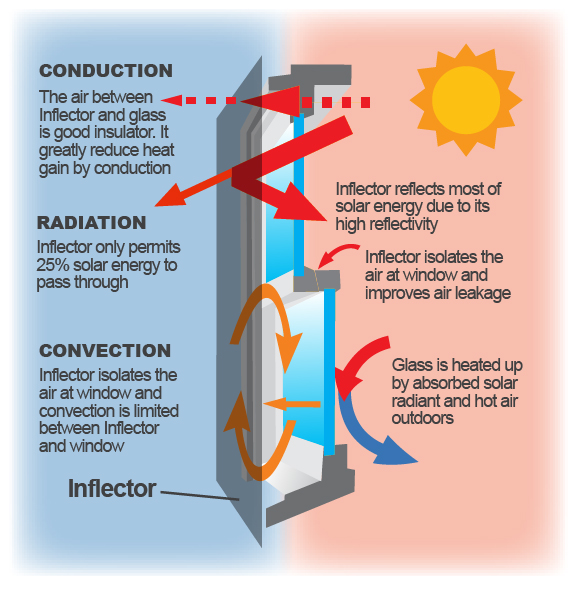

How In'Flector works in Summer

Inflector Summer function

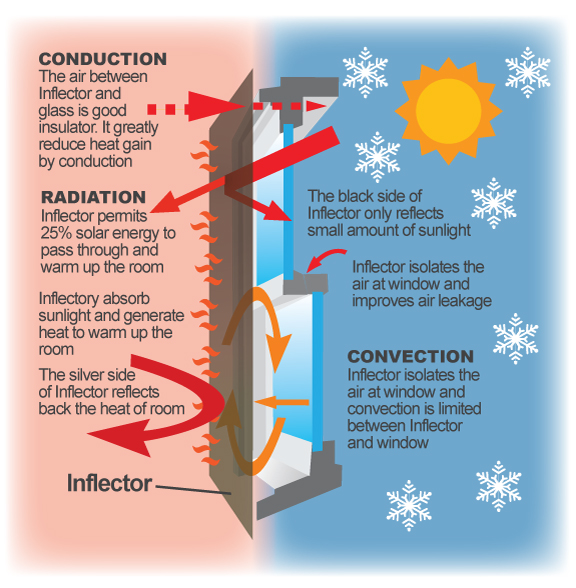

How In'Flector works in Winter

Inflector Summer function

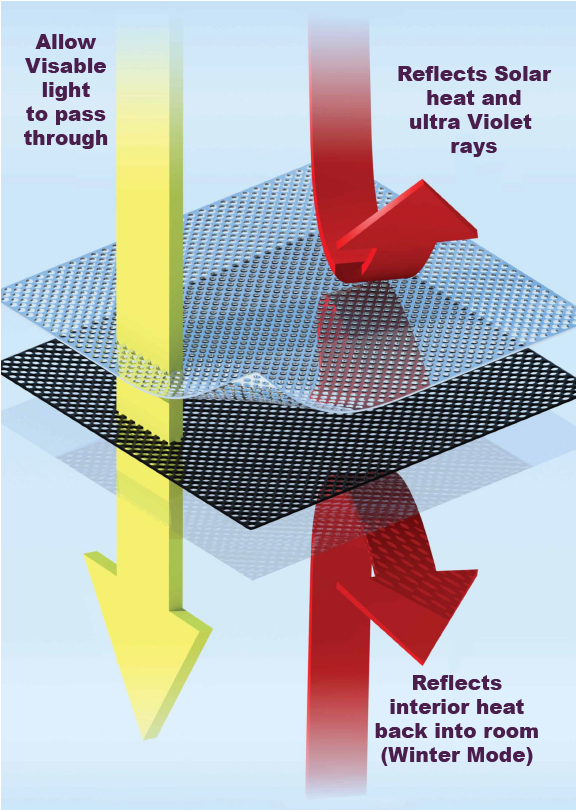

Reflection (emissivity) to reduce solar heat gain.

This is by far In'Flector Solar Shades most powerful weapon. The sun gives off electromagnetic waves, and some of this energy we see as light or feel as warmth. These waves are travelling at 300,000 Km/second and plain window glass is 90%* transparent to them. If you place a reflective surface in the path of these rays, you can change their direction by reflection.  Compared with a conventional blind or curtain, In'Flector Solar Shade outperforms due to its highly reflective properties and distinctively one-of-a-kind angular perforation. The majority of the sun’s rays and heat are reflected back out of the window before they are converted into heat energy.


A still air barrier to reduce heat transfer from the hot side to the cold side.

A still air space can be a very effective method of insulation. In'Flector Solar Shades creates a still air space between your room and the glass. This still air space, although not as effective as some bulk insulations, such as one of the foams, makes a significant contribution to the insulation of your room from the heat outside.

In the hot summer time, In'Flector Solar Blinds work to keep cool, partially by creating a still air barrier, and partly by preventing the cool air circulating in your room from making contact with the hot glass, while still retaining your view.

Based on same principles, in the cold days of winter time, In'Flector works to keep warmth. Moreover, In'Flector Solar Blinds in their winter mode become a passive solar collector. For example a 4’x4’ window in direct sunlight creates 2096 BTU’s* an hour while still acting as a window insulator that stops the hot to cold air exchange.

In'Flector is the total solution of window insulation

Window using In'Flector

Inflector Summer function

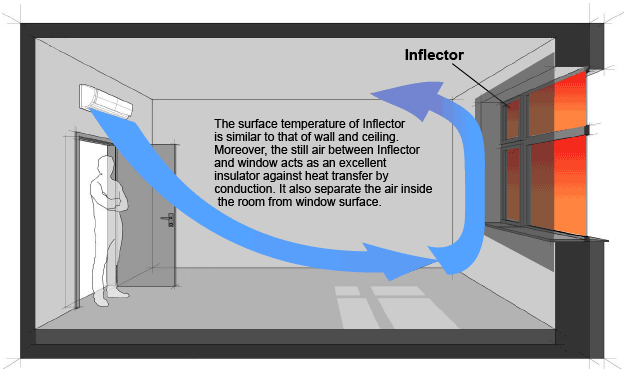

  • In'Flector separate the cool air inside the room from the hot window surface.
  • The still area between In'Flector and window acts as an excellent thermal insulator.
  • The surface temperature of In'Flector is similar to that of the inside wall. (much lower than that of window surface)
  • Reduce the heat gain by conduction and convection through window.

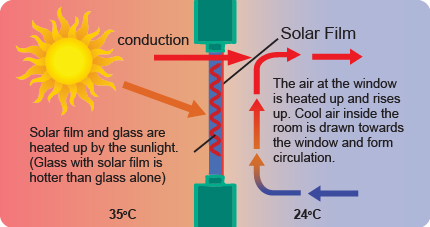

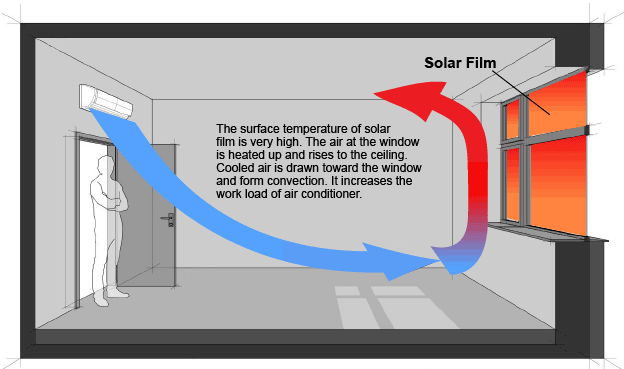

Window using Window Film

Inflector Summer function
  • Window film has higher surface temperature than bare glass as window film absorb more heat than glass.
  • The air inside the room is in direct contact with the heat surface of film window.
  • The air at the window is heated up and rises up. Cooler air is drawn toward the window and creates a circulation.
  • Increase the heat gain by conduction and convection through window.

In sunny days

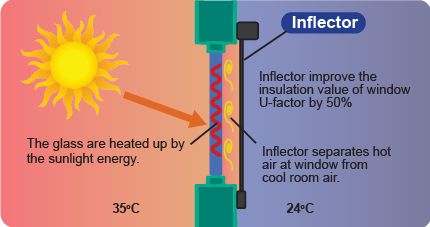

Window with In'Flector

Inflector Summer function

Window with Window Film

Inflector Summer function

At night

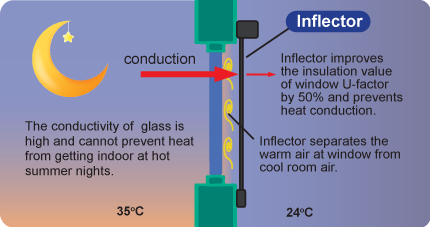

Window with In'Flector

Inflector Summer function

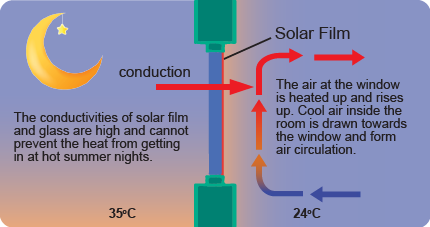

Window with Window Film

Inflector Summer function
filler image

In'Flector is much more flexible to use than window film

Using In'Flector is like wearing sunglass. Use it only when needed. Use it when the sun is strong. Put it away in cloudy days or when you want enjoy the sunlight in winter. Moreover, by using smart home control device, you can set timer or sensor to control the open and close of In'flector.

On the other hand, window film does not have this flexibility. Window film is not possible to adapt to all weather changes. No matter whether you choose reflective type, clear view type, light color or dark color, you should understand that none of them cannot be good for all weathers and seasons.

Final words. You may be interested to know that reflective window film will make your window look like a mirror and so block window view at night. However, non-reflective window film is not effective to deal with the torching sunlight in Hong Kong summers.


In sunny days

Window using In'Flector

Inflector Summer function
In'Flector not only reflect sun heat, it can also control glare.

Window using Window Film

Inflector Summer function
Light color window film may not enough to control strong glare.

In cloudy days

Window using In'Flector

Inflector Summer function
Put away In'Flector when light is not enough in cloudy days.

Window using Window Film

Inflector Summer function
Dark color window film will make the room too dark.
